Biochemistry Analyzer | High-Precision Clinical Chemistry Testing

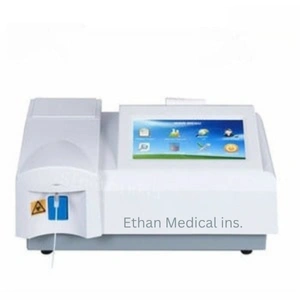

The Biochemistry Analyzer is a fully automated diagnostic system designed to deliver fast, accurate, and reliable biochemical results. Moreover, it is engineered for precision and ease of use. As a result, it helps laboratories improve workflow speed. Consequently, healthcare professionals can make quicker and more confident clinical decisions.

Applications of a Biochemistry Analyzer

A biochemistry analyzer measures chemical and biological markers in blood, serum, plasma, urine, and other fluids. Because of this, it plays a vital role in diagnostics and research. Additionally, it supports both routine and specialized testing. Therefore, it is widely used in many environments.

For example, it is suitable for:

• Hospital laboratories

• Diagnostic and reference labs

• Research and academic institutes

• Physician office laboratories (POLs)

• Wellness and preventive care centers

• Emergency and critical-care units

• Public health laboratories

• Pharmaceutical and biotech labs

• Veterinary diagnostic labs (if needed)

Key Features

The Biochemistry Analyzer offers many practical features. For instance, it includes:

• 7-inch LCD touchscreen

• 10 incubators (37 ± 0.3 °C) with 3 timers

• Test methods: Kinetic, Endpoint, Two-point, Absorbance

• Absorbance range: 0–4.500 Abs with real-time curve view

• Flow cell and cuvette compatibility

• Seven wavelength filters: 340, 405, 492, 510, 546, 578, 630 nm

• 80 pre-programmed items

• Storage for 10,000 results

• Light-source hibernation mode

Furthermore, these features improve accuracy. Likewise, they support consistent performance across daily testing.

Technical Specifications

The Biochemistry Analyzer supports several measurement modes. Specifically, it uses Kinetic, Endpoint, and Two-point methods. Additionally, it covers wavelengths from 340–630 nm with seven filters.

Moreover, it provides a wide absorbance range of 0–4.500 Abs.

• External precision: 0.0001 Abs

• Internal precision: 0.00001 Abs

• Repeatability (CV): < 1%

• Carry-over: < 1%

In addition, its temperature control is reliable:

• Flow cell incubator: 25, 30, 37 °C (±0.1 °C)

• Sample volume: 0–3000 µL (≥500 µL recommended)

• Flow cell: 32 µL quartz, 10 mm

Furthermore, its data functions are strong:

• Storage for ≥10,000 results

• Built-in thermal printer

• 7-inch LCD touchscreen

• Sample incubator: 10 positions at 37 °C (±0.3 °C)

Overall, these specifications of Biochemistry Analyzer demonstrate dependable performance and broad laboratory usefulness.
